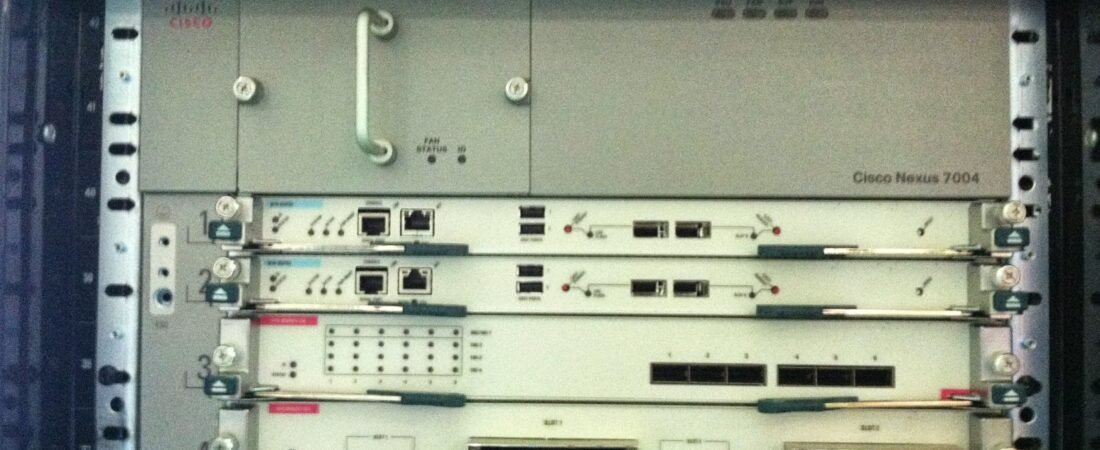

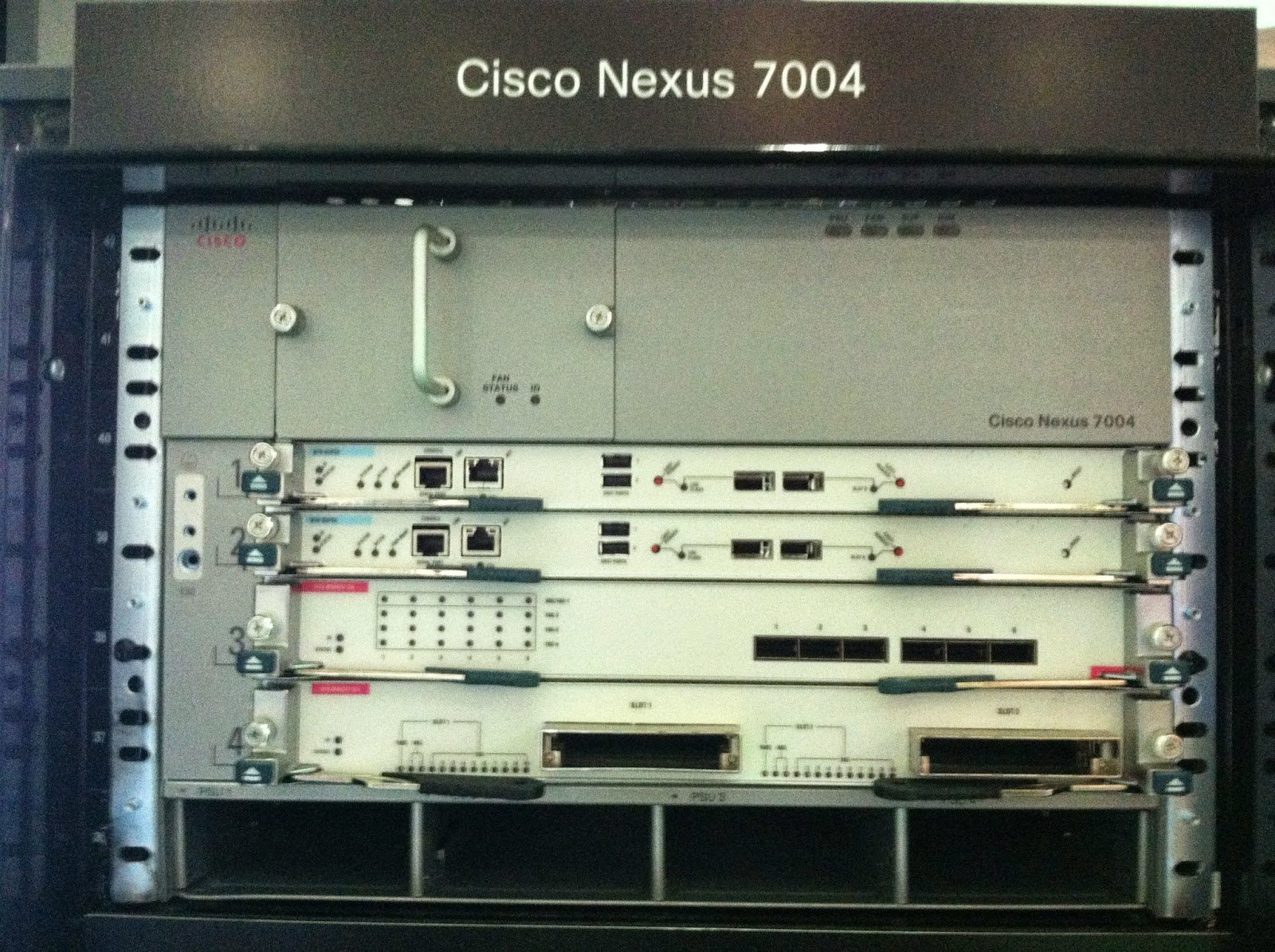

7004
:-

·         Fabric
Module is not present.

·         Sup
1 is not supported. Only supports Sup2 and Sup 2E.

·         All
XL versions of M1series modules, M2 series modules, and F2 series modules are
supported. It does not support the F1 series module or non-XL M1 series modules

·         Maximum
2 line card supported, with 2 dedicated supervisor slots which cannot be used
for line cards.

·         Maximum
BW per slot is 440 Gig.

·         Throughput
– more than 1.92.

·         Supervisor Module slot – 1 and 2

            7009:-

·
Only Fab-2 supported

·
All supervisor and line card supported

·
Maximum 7 line card supported with 2 dedicated supervisor slots.

·
Maximum
BW per slot is 550Gig.

·
Throughput
– more than 8 Tbps.

·
Rack
Space – 14 RU

·         Supervisor Module slot – 1 and 2

              7010:-

·
Maximum 8 line card supported with 2 dedicated supervisor slots.

·         All Sup, Fab and line card supported.

·
More than 15 Tbps throughput

·
Rack
Space – 21 RU

·
Maximum
BW per slot is 550Gig.

·         Supervisor Module slot -5 and 6

  7018:-

·
All Sup, Fab and line card supported

·
Maximum 16 line card supported with 2 dedicated supervisor slots.

·
More than 15 Tbps throughput.

·
Rack
Space – 25 RU

·
Maximum
BW per slot is 550Gig.

                      ·        Supervisor Module slot – 9 and 10
